The C2 Server Setup

To create a realistic Command & Control infrastructure for our rootkit project, we deployed a C2 server on a Scaleway VPS (51.159.97.114).

The server was configured to run both the C2 backend and web interface, with DNS records pointing the domain epirootkit.com to it. We set up a specific subdomain jules_chef_de_majeur.epirootkit.com for rootkit client communications.

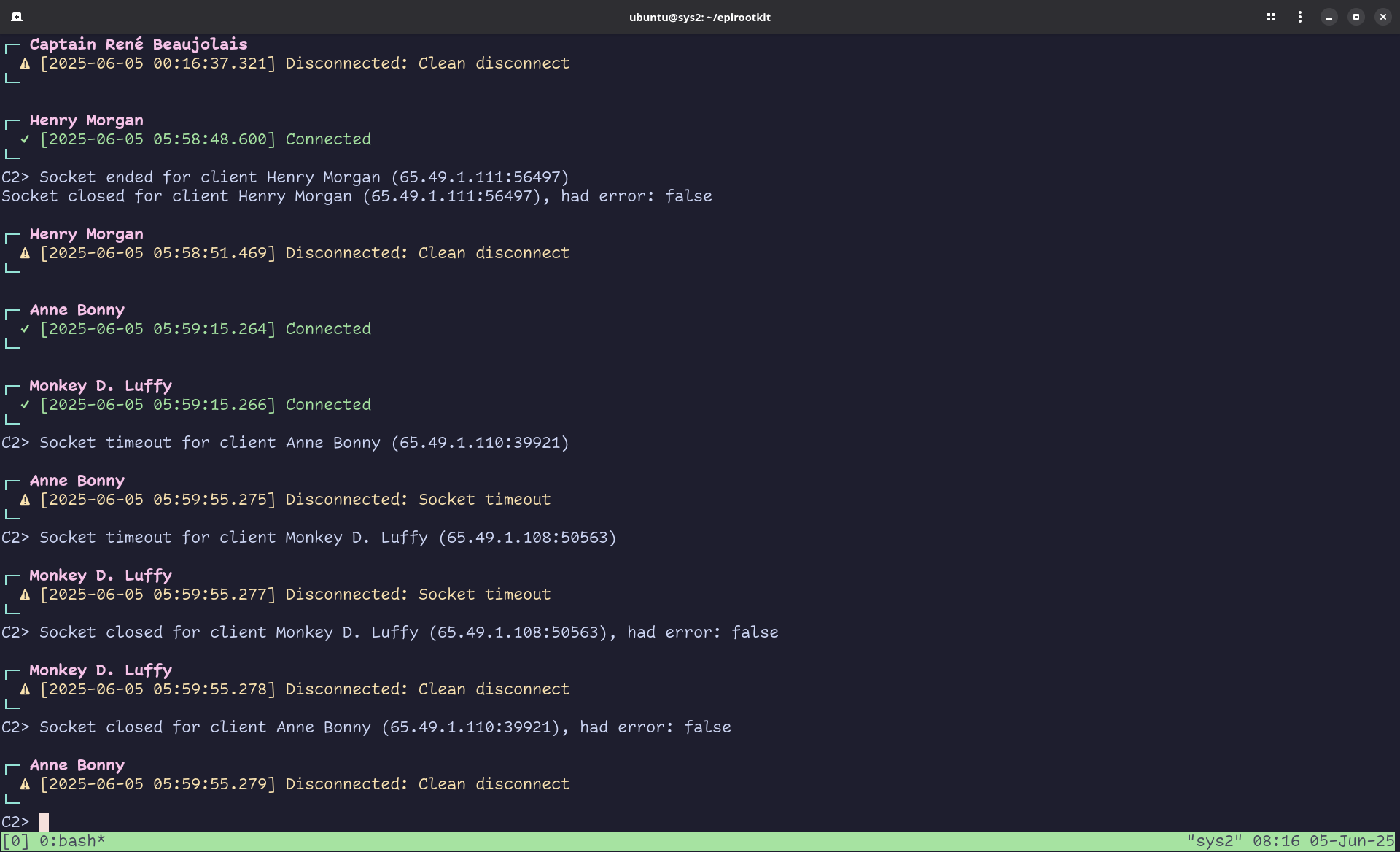

Server logs showing unauthorized connection attempts

Upon investigation, these connections originated from US-based VPN IP addresses 65.49.1.*, likely automated bots scanning for open ports.

PortServicePurpose
22SSHRemote server administration
3000C2 Web InterfaceRootkit control panel
4444Rootkit ClientClient connections

And of course there is a password to access the C2 web interface. And anyway.. I set it up so that nobody else can access it right… ?

VPN Access

I set up a zero trust VPN access (Twingate) to restrict access to the C2 server UI.

While connected to the VPN you can access the web interface with : http://c2.epirootkit.com:3000

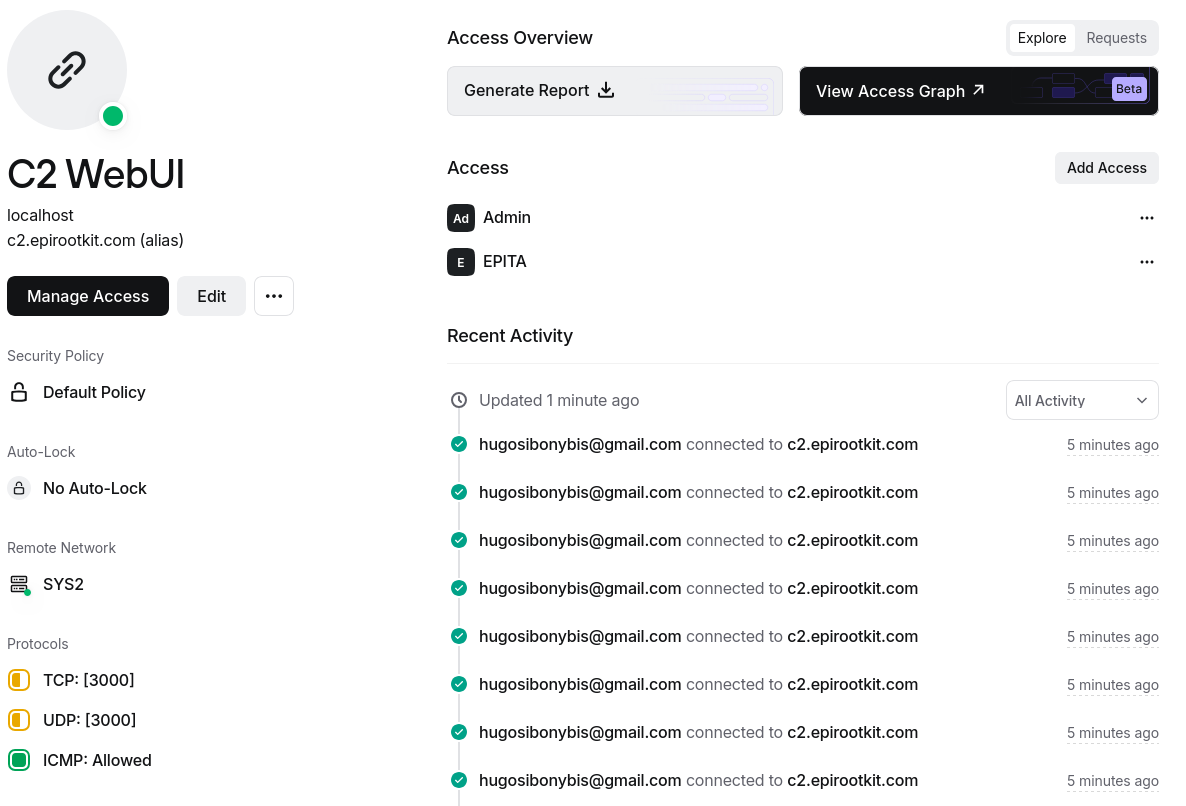

Twingate VPN setup

In addition with iptables rules, this should be enough to block the bots :

  ubuntu@sys2:~/epirootkit$ sudo iptables -nvL                      LABEL_DEPLOYED_BY="linux" bash
Chain INPUT (policy DROP 959 packets, 177K bytes)
 pkts bytes target     prot opt in     out     source               destination
10778 1690K ACCEPT     0    --  *      *       0.0.0.0/0            0.0.0.0/0            ctstate RELATED,ESTABLISHED
   24  1516 ACCEPT     0    --  lo     *       0.0.0.0/0            0.0.0.0/0
    0     0 ACCEPT     6    --  *      *       REDACTED             0.0.0.0/0            tcp dpt:22
    0     0 ACCEPT     6    --  *      *       163.5.3.68           0.0.0.0/0            tcp dpt:22
    0     0 ACCEPT     6    --  *      *       0.0.0.0/0            0.0.0.0/0            tcp dpt:4444
    0     0 ACCEPT     17   --  *      *       0.0.0.0/0            0.0.0.0/0            udp dpt:4444

Chain FORWARD (policy DROP 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination

Chain OUTPUT (policy ACCEPT 11067 packets, 2343K bytes)
 pkts bytes target     prot opt in     out     source               destination
PortServiceAllowed Source IPsAccess Rule
22SSHREDACTED, 163.5.3.68ACCEPT (trusted IPs only)
4444Rootkit Client0.0.0.0/0ACCEPT (rootkit client connections)
*All other services*DROP (all other traffic blocked)

I’m considering putting a honeypot on the server to catch and analyse them.
